Philips SJA1000
Intel 82527
Renesas (Hitachi) HCAN2
OKI ML-9620
Windows CE driver for CAN Controllers
Transmit and receive CAN messages on common CAN controllers. Easy-to-use API functions to access the driver from your application. Supports both memory- and I/O-mapped register accesses. Hardware properties such as base address and irq can be configured through the registry.

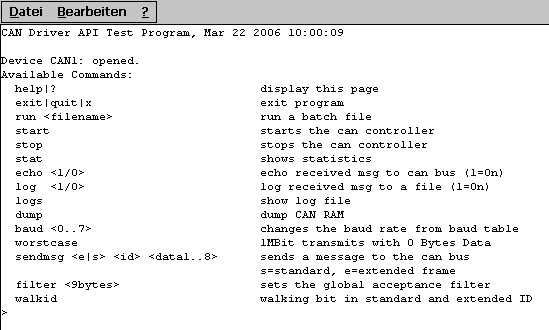

The Sample Test Application sends / receives CAN packets and handles all CAN bus / driver errors. Furthermore you can get statistics, verify the connectivity using walking bit tests and worstcase tests (smallest packets at 1MBit/sec) on the bus.
CAN Driver
- Stream Interface Driver
- Interrupt-driven driver collects all CAN packets in the background
- full source
- CAN Error handling
- Easy to use functions for your application
- Easy registry configuration of base address, interrupt and bus interface
- supports memory and I/O based interface
- support for PCI Card with multiple SJA1000 CAN Controllers
- support for all versions up to Windows Embedded CE 6.0
- Interface to the .NET Compact Framework
Current available versions:
- CAN-Driver for Philips SJA1000 CAN Controller
- Windows XP driver for SJA 1000
- CAN-Driver for Intel 82527 CAN Controller
- Driver for Renesas (Hitachi) SH-7760 (SH-4) HCAN2 Controller
- Driver for OKI ML-9620 CAN Controller
Other devices may be supported on request.
Contact us for a demo version!
CANUsersGuide.pdf
